Features

Parameters

  • Dimension: 108.8 x 108.8 x 216mm

  • Material

    • Main body: aluminum alloy

    • Side panel: acrylic

  • Support Platform: Raspberry Pi 5

  • Power Input: USB Type C, 12V/5A

  • Interfaces

    • Raspberry Pi standard 40-Pin GPIO

    • spring-loaded Micro SD socket

    • USB Type C power input

    • 2 x USB 2.0

    • 2 x USB 3.0

    • Gigabit LAN port

    • 2 x 4Kp60 HDMI Type A

  • Power button

  • OLED screen: 0.96’’ 128x64 resolution

  • 9025 PWM Fan, 3010 CPU Fan

  • Storage: 3.5-inch SATA (compatible with 2.5-inch) x2, micro SD card x1, PCIe Gen2 x1 NVMe SSD x2

  • 1220 Battery for RTC

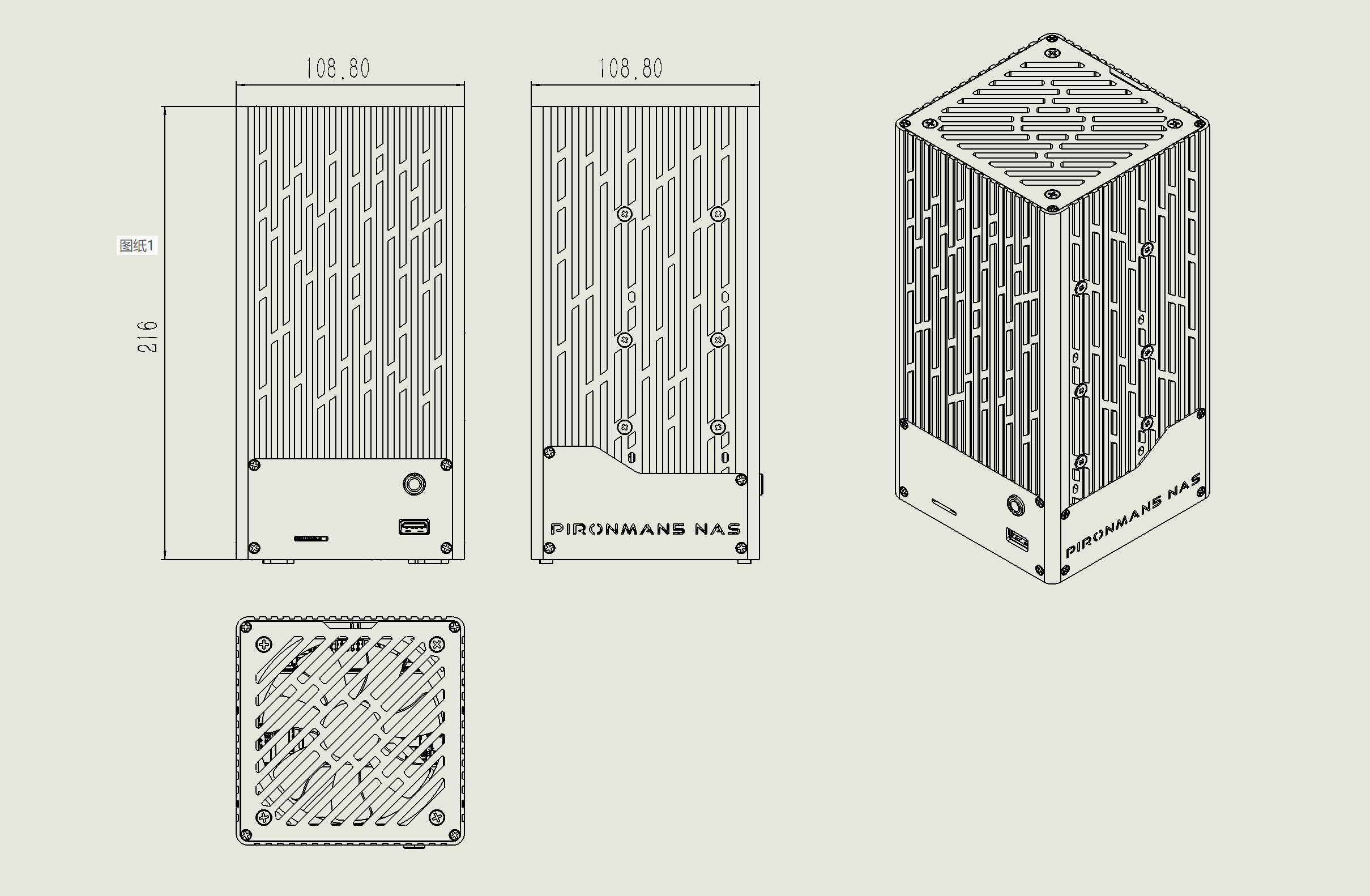

Dimensional Drawing

../_images/pironman5_dimension.png
